Vacuum Ceramic Disk Filter, Vacuum Ceramic Disc Filter,Ceramic Filter for Ore Pulp Dehydration

Name: Vacuum Ceramic Disk Filter, Vacuum Ceramic Disc Filter,Ceramic Filter for Ore Pulp Dehydration
Brand: Toncin
Rating: 5.0 (44 reviews)

TC series ceramic vacuum filter is a new type high-effect, energy saving filtration equipment, using vacuum and ceramic plate with micro-holes for solid-liquid separation. The plate material is corundum, resisting to almost all temperatures, and has a long operation life. The micro-holes in plates only allows liquid to flow through but not air and solid. Filtrate is drawn through the ceramic plates as they are immersed into the slurry cabin, and cakes forms on the surface of the Plates.

Quantity:
Availability:





Inquire Add to Basket

Model:
TC Ceramic Vacuum Filter
Brand:
Toncin

Product Description

Products Introduction:

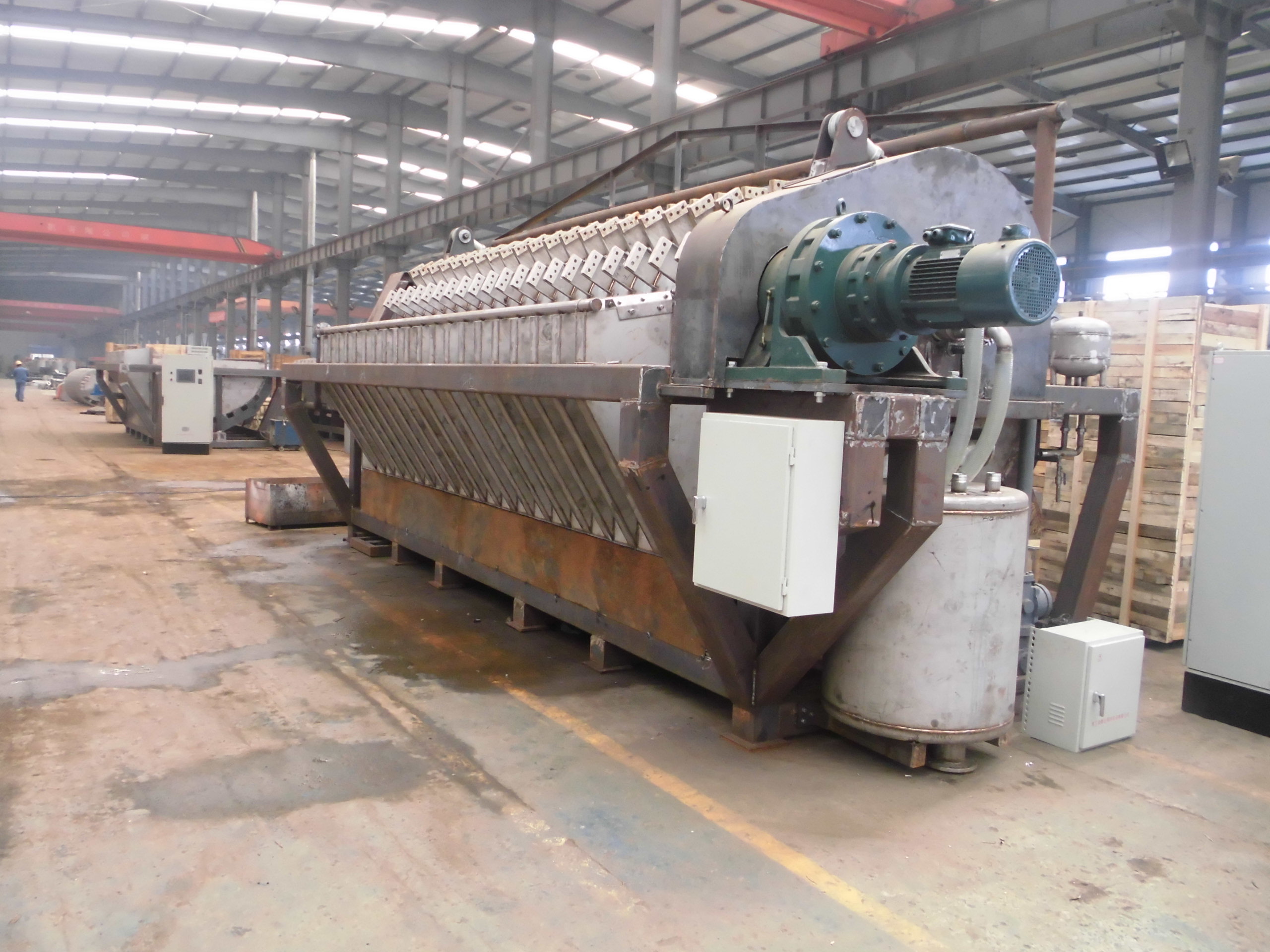

TC series ceramic vacuum filter is a new type high-effect, energy saving filtration equipment, using vacuum and ceramic plate with micro-holes for solid-liquid separation. The plate material is corundum, resisting to almost all temperatures, and has a long operation life. The micro-holes in plates only allows liquid to flow through but not air and solid. Filtrate is drawn through the ceramic plates as they are immersed into the slurry cabin, and cakes forms on the surface of the Plates.

Ceramic filter ensure high productivity and superior process result for mining applications. This equipment can achieve efficient dewatering, competitive investment costs, low installation and operating costs, and high safety.Our product have found their wide application in the separation of selected mine and tails mine of nonferrous metal,ferrous metal,less-common metal and oxide of electrolysis residue,slag in chemical,environment protection and so on. The material fineness from -200 to -450 meshes and various superfine materials.

Product Application:

Our product have found their wide application in the separation of selected mine and tails mine of nonferrous metal,ferrous metal,less-common metal and oxide of electrolyze residue,slag in chemical,environment protection and so on. The material fineness from -200 to -450 meshes and various superfine materials.

Product Specifications:

Filter plate(pc)	Tank volume(m3)	Installed power(kw)	Operate power(kw)	Main engine(LWH)(M)
12	2	4.5	4.3	1.21.51.4
24	1	6	5.8	1.61.02.1
36	1.2	8	7.5	3.02.22.1
36	1.7	9	8.5	3.02.82.6
48	2.2	13	12.5	3.62.82.6
60	3.7	13	12.5	3.82.82.6
72	3.7	15	14.5	4.12.92.6
84	4.8	17	16.5	4.62.92.6
96	5.5	17.5	16.5	4.62.92.6
108	6	17.5	16.5	5.22.92.6
120	6.7	21	20.5	5.52.92.6
144	8	33	32	6.02.92.6
180	10	33	32	6.62.92.6
180	12.5	47	46.5	6.73.33.0
240	164	53	52.5	8.23.33.0
204	185	71	70.5	7.93.63.3
240	20	80	78.5	8.73.63.3
360	24	92	91	9.23.63.3

Product Features:

(1) Filter cake has low water content because of the high vacuum degree (0.090.098MPa).
(2) The solid content of filtrate is below 50ppm. This means filtrate can be recycled.
(3) It can save 90% energy or even higher on the contrary of traditional filter.
(4) Filter cake cleaning process is added to clean some specific materials.
(5) It is highly automatic and the labor input is low.
(6) Compact structure covers less floor area, and is easy to install and maintenance.
(7) Advanced drainage system fits for different working conditions.

Product Details:

Products Advantages:

(1) Microvac (vacuum degree-0.09~-0.098MPa),low moisture of cake.
(2) Solid content of filtrate<50ppm,which can be recycle use in the system.
(3) Energy saving can reach 90%,low energy consume,low operation cost.
(4) Filter cake cleaning system is added,which is fit for the material needs to be washed.
(5) PLC and computer integrate with automatic valve control,high degree of automation reduces labor intensity.
(6) Compact structure requires a smaller floor space and offers convenient maintenance.

(7) Advanced drainage system ensures application in any operating conditions.

Service Support

Whole Technological Design

Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction

Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.

Response Time and After-sales Services

If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
